RedCraft

Development Period: September 2025 - December 2025

RedCraft is a MineCraft-style voxel game, featuring procedural terrain generation, real-time lighting, physics simulation, and multiple gameplay systems. The project demonstrates expertise in graphics programming, multithreaded architecture, and multiple game systems design.

Demo

Main Features

Basic Controls

Left Click: Mine/destroy blocks
Right Click: Place blocks
1-9 Number Keys: Select block type from hotbar HUD
X: Cycle to next hotbar group (swap available block palette)

Procedural World Generation

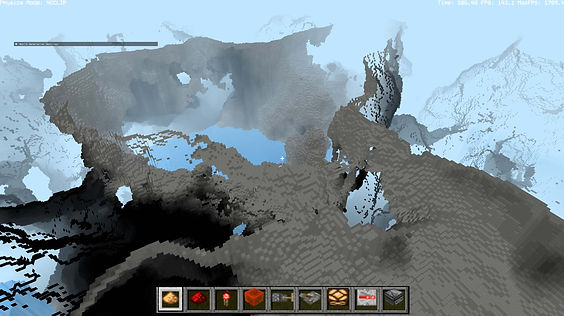

Stage1: Density Noise Enabled

*Sea Enabled

TYPOGRAPHY

Redcraft implements a procedural world generation pipeline with multi-stage terrain shaping, biome selection, cave carving, and feature placement.

In-Game Pipeline Stages: Biomes → Noise → Caves → Water → Surface → Features

BiomeGenerator: 6-parameter biome selection using 2D Perlin noise layers (Temperature, Humidity, Continentalness, Erosion, Weirdness, Peaks & Valleys). Lookup tables map parameter combinations to 17 biome types including Ocean, Desert, Forest, Jungle, Snowy Peaks, etc.
TerrainGenerator: 3D density-based terrain using formula D(x,y,z) = N(x,y,z) + B(z) where B(z) is height bias. Continentalness drives height offset curves and squashing curves (PiecewiseCurve1D) to create oceans, coastlines, and inland mountains.
CaveGenerator: Three cave types using 3D noise:
- Cheese Caves: Large spherical rooms using dual-layer 3D Perlin noise (scales 0.014 and 0.01). Two noise values blended (70%/30%) and offset; density > 0.65 carves void. Vertical stretch (0.008 z-scale) creates tall chambers.
- Spaghetti Caves: Tunnel networks formed by intersecting two perpendicular 2D noise planes (XY-plane + XZ-plane, scale 0.025, 3 octaves). Tunnel forms where |noise1| + |noise2| < 0.18 — this mathematical trick produces naturally curving 3D passages without explicit path generation.
- Noodle Caves: Thin winding tunnels using ridge noise (scale 0.035, 2 octaves) for chaotic shapes. Threshold < 0.08, restricted to z < 50 for deep-only generation.
- Depth-Based Aquifer System: Layered cave filling based on elevation — lava layer (z < 15) fills all caves; deep aquifer (z 15-30) uses noise to create water-filled caves with air pockets in large chambers; mid-level caves (z 30-50) have occasional water pools; ocean biome caves below sea level fill with water but preserve air pockets via drainage noise.
- Liquid Post-Processing: Simulates basic fluid physics — liquids fall through air blocks below; lava adjacent to water converts to stone (obsite generation). Single-pass top-down iteration ensures consistent flow behavior.
- Surface Protection: CalculateDistanceToSurface() prevents cave openings within 8 blocks of terrain surface, avoiding unnatural exposed caverns. Depth factor reduces cave frequency near surface (100% at z=60, 10% at z=80).

Caves

SnowTaiga

SurfaceBuilder: Biome-specific block replacement with configurable top/filler/under layers. Desert→Sand, Snowy→Snow, Forest→Grass+Dirt. Temperature overrides freeze water surfaces to ice.
FeaturePlacer: Tree stamps selected by biome (Oak, Spruce, Jungle, Cactus), underwater plants in ocean biomes, and depth-based ore distribution (Diamond<16, Gold<32, Iron<64, Coal everywhere).
WorldGenPipeline Orchestration: Central GenerateChunk() method coordinates all stages sequentially, passing ChunkGenData (biome maps, surface heights, biome parameters) between stages. Each stage can be independently toggled via runtime flags (g_caveCarvingEnabled, g_seaEnabled, g_blockReplacementEnabled, g_treeGenerationEnabled), enabling isolated debugging. Supports alternate generation modes including FLAT_FARM for gameplay testing.

ImGui Debug Tools: Integrated ImGui and ImPlot panels for real-time parameter tuning without recompilation. Interactive curve editor for height offset and squashing curves, noise layer visualizers displaying Continentalness/Erosion/Temperature/Humidity/PV as grayscale maps, and sliders for all noise parameters (scale, octaves, persistence). Changes trigger immediate world regeneration for rapid iteration.

Redstone Circuit Simulation

RedCraft implements a tick-based redstone logic simulation supporting signal propagation, mechanical components, and Minecraft-accurate timing behaviors.

Core Architecture:

Tick System: Discrete simulation at 10 ticks/second (100ms intervals). m_currentTick counter drives all delayed operations. Update queue processes scheduled events in FIFO order.
Power Model: 4-bit power levels (0-15) with distance-based attenuation. Distinguishes between weak power (through blocks) and strong power (direct connection). IsPowered(), IsStronglyPowered(), and IsPistonPowered() provide context-specific queries.
Scheduled Updates: RedstoneUpdate struct pairs BlockIterator with scheduledTick for delayed processing. m_queuedPositions hashset prevents duplicate scheduling.

Redstone Wire:

3D Connection Detection: WireConnection enum tracks NONE/SIDE/UP/DOWN per direction. Wires climb solid blocks and descend off edges, enabling vertical signal routing.
Power Propagation: Wire power = max(direct input, adjacent wire - 1, climbing wire - 1). GetDirectPowerInput() checks torches, repeaters, levers; GetAdjacentWirePower() and GetClimbingWirePower() handle wire-to-wire transmission.
Visual State: WireConnections::GetTextureIndex() encodes 4-direction connectivity into 0-15 texture atlas index for correct corner/straight/cross rendering.

Signal Sources:

Lever: Toggle on player interaction via ToggleLever(). Outputs power level 15 in attached direction when ON.
Button: Momentary pulse via PressButton(). Stone button = 10 ticks (1s), wood button = 15 ticks (1.5s). Auto-schedules deactivation.
Redstone Block: Constant power level 15 to all adjacent blocks. Cannot be turned off.

Signal Processors:

Redstone Torch: Inverts input signal. OFF when attached block is powered, ON otherwise. Burnout protection: Tracks toggle count per position; >8 toggles within 1 second window triggers temporary disable. TorchBurnoutEntry tracks timestamps and counts; CleanupBurnoutTracker() expires old entries.
Repeater: Configurable 1-4 tick delay (100-400ms) via CycleRepeaterDelay(). CheckRepeaterLock() detects side-locking by adjacent powered repeaters. Outputs full power (15) regardless of input strength, enabling signal refresh.
Observer: Detects block state changes in facing direction. NotifyObserversOfChange() triggers 2-tick pulse output via ObserverUpdate queue. Enables BUD (Block Update Detector) circuits.

Mechanical Components:

Piston Push Chain: CalculatePushList() recursively builds push/destroy lists up to 12 blocks. CanBePushed() / CanBePulled() check block types (obsidian=immovable, torch=destroyed). Sticky pistons pull single block on retract.
Piston Timing: Extension/retraction scheduled via tick system. GetPistonFacing() extracts direction from block metadata; SetPistonExtended() updates visual state.

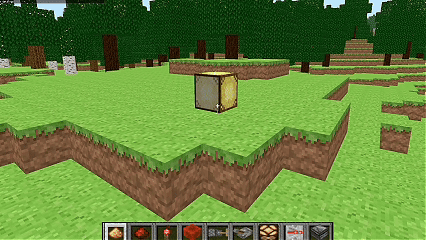

Redstone Lamp: UpdateLamp() toggles lit/unlit state based on IsPowered(). UpdateLampLighting() triggers chunk light recalculation for proper illumination.

Update Propagation:

Neighbor Scheduling: ScheduleNeighborUpdates() queues all 6 adjacent blocks when a redstone component changes state.
Event Hooks: OnBlockPlaced(), OnBlockRemoved(), OnBlockStateChanged() integrate with World block modification, triggering appropriate redstone recalculations.
Chunk Dirtying: MarkChunkDirty() flags affected chunks for mesh rebuild when wire connections or lamp states change.

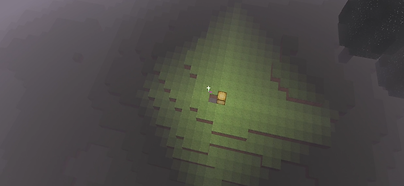

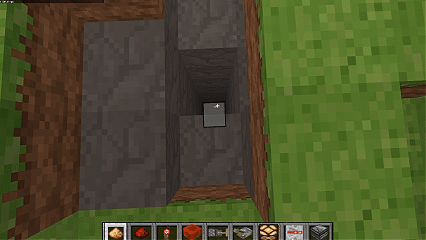

Lighting System

Lighting implementation uses a dual-channel voxel lighting with flood-fill propagation across chunk boundaries.

Sky Light Channel: Propagates downward from sky-exposed blocks (max value 15), attenuates by 1 through transparent blocks (water, glass, leaves). Direct sky columns maintain full brightness; covered areas receive reduced ambient light.
Block Light Channel: Emitted by light-emitting blocks (torch=14, lava=15, glowstone=15), spreads omnidirectionally with -1 falloff per block distance. Multiple light sources blend via max operation.
Flood-Fill Propagation: BFS-based algorithm propagates light changes across chunk boundaries using neighbor links. When a block changes, affected light values re-propagate until attenuation reaches zero. Supports both light addition (placing torch) and removal (breaking light source).
Per-Block Storage: Light values packed into single byte per block (4 bits sky + 4 bits block). Mesh vertices sample light from adjacent air blocks and bake into vertex colors for smooth gradients across faces.
Dirty Propagation: Light changes mark affected chunks dirty; recalculation completes before mesh rebuild to ensure visual consistency.

Chunk Management System Design

Efficient voxel world streaming with state machine-based lifecycle management and async I/O.

Chunk State Machine: Uninitialized → Generating/Loading → Active → Saving → Deactivated

Job System Integration: Chunk operations execute on dedicated thread pools. GenerateChunkJob (CPU-bound worker threads) handles procedural generation; LoadChunkJob and SaveChunkJob (I/O threads) handle disk operations. Load jobs automatically fall back to generation if no save file exists.
Block Data Structure: Compact 4-byte block representation optimizing memory usage for large voxel worlds.
- Type Index (1 byte): Block type ID (0-255), indexes into BlockDefinition table for properties lookup.
- Light Data (1 byte): Dual-channel lighting packed as high 4 bits = sky light (0-15), low 4 bits = block light (0-15).
- Flags (1 byte): Bit-packed boolean states including IS_SKY, IS_LIGHT_DIRTY, IS_OPAQUE, IS_SOLID, IS_VISIBLE, IS_REDSTONE_DIRTY.
- Redstone Data (1 byte): Multi-purpose field — low 4 bits = power level (0-15), bits 4-6 = block facing direction (0-5 for ±X/Y/Z), bit 7 = special state (lever on/off, piston extended, repeater locked).
Data-Driven Block Definitions: All block properties (opacity, transparency, light emission, texture coordinates, solidity, sound effects) defined in XML. Adding new block types requires zero code changes—only XML edits and texture atlas updates.
ChunkSerializer with RLE Compression: Binary format with ChunkFileHeader containing FourCC validation and chunk dimension bits. Block data (type + lighting + flags per block) compressed using Run-Length Encoding, achieving 60-80% size reduction. Format: [Header][CompressedSize:uint32][RLE Data].
Neighbor Linking: Each chunk maintains pointers to 6 adjacent chunks (±X, ±Y, ±Z) for cross-boundary operations including lighting propagation and mesh stitching at chunk borders.
Hidden Surface Culling: During mesh building, only block faces adjacent to air or transparent blocks generate vertices. Interior faces between solid blocks are culled at build time, reducing vertex count by ~85% compared to naive full-cube rendering.
Dirty Flag System: Block modifications mark chunks dirty, triggering light recalculation and mesh rebuild on next frame. Batches multiple edits before rebuilding to avoid redundant work.

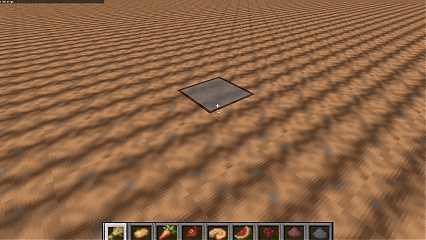

Crop & Farming Mode System

RedCraft builds a data-driven basic crop system with configurable growth patterns, condition-based mechanics, and world-separated persistence.

Growth Patterns: Stage change (Wheat 8-stage progression), Grow-up (Sapling→Tree stamp), Spread (Grass/Mushroom propagation), Multi-block vertical growth (Sugarcane/Cactus with max height), Tree generation via FeaturePlacer

Condition System: Light level thresholds (min/max), block adjacency requirements, water proximity check (Manhattan distance), sky access validation, base block type verification

Farmland Mechanics: Hydration state (dry/wet) based on water radius=4, moisture affects growth speed multiplier, trampling converts to dirt, unplanted decay timeout

Fluent Definition API: CropDefinition builder pattern configuring growth type, stages, light requirements, base blocks, growth chance per random tick, and drop tables

Drop Manager: Configurable min/max quantities with weighted randomization, item entity spawning with velocity scatter

Random Tick System: Per-chunk distributed ticks, growth chance evaluated per crop type, tick rate scales with game speed

World Save Isolation: Leverages SaveSystem's context stack (PushSaveContext/PopSaveContext) to separate Saves/InfiniteWorld/Chunks/ from Saves/FarmWorld/Chunks/. World type detected via WorldGenPipeline::GetWorldGenMode(); farm world enforces fixed 12×12 chunk boundary preventing unbounded save file growth.

Dynamic Weather System & Atmosphere

Redcraft creates dynamic weather simulation with day-night cycle, transparent rendering pipeline, and environmental effects.

Transparent Rendering Pipeline:

Dual VBO/IBO Architecture: Per-chunk geometry split into opaque buffer and transparent buffer (water, glass, ice, leaves).
Two-Pass Rendering: Pass 1 renders opaque geometry with depth write ON; Pass 2 renders sorted transparent geometry with depth write OFF, depth test ON (reads but doesn't write, preventing transparent-on-transparent artifacts).
Camera-Distance Sorting: ChunkSortTransparencyJob runs on worker threads, sorting transparent faces back-to-front by centroid distance to camera. Re-sorts when camera moves beyond threshold.
Alpha Blending: Fragment shader applies SRC_ALPHA, ONE_MINUS_SRC_ALPHA blending with underwater tint and fog based on camera medium state.

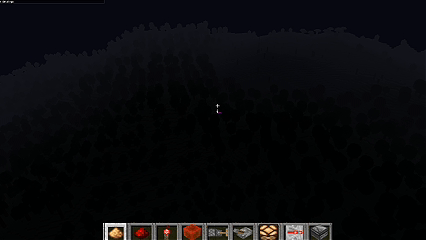

Day-Night Cycle:

World Time: Continuous time value drives sun/moon position, sky color, and ambient light intensity. Configurable day length (default 20 minutes real-time = 24 hours in-game).
Sun/Moon Rendering: Sun and moon orbit opposite each other; position calculated from world time. Sunrise/sunset trigger smooth sky color transitions (orange→blue→dark blue→black).
Dynamic Lighting: Outdoor sky light intensity scales with sun elevation (full brightness at noon, reduced at dawn/dusk, minimal at night). Indoor block-lit areas unaffected.

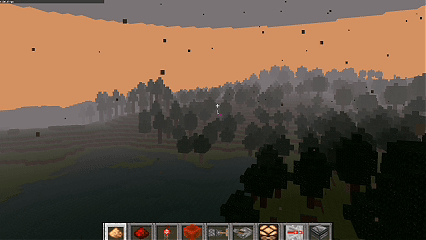

Weather System:

Weather States: 12 states (Clear, Cloudy, Light Rain, Heavy Rain, Thunderstorm, Snow, Blizzard, etc.) with smooth interpolated transitions. Duration randomized within configurable ranges.
Particle Effects: Rain uses stretched billboards with downward velocity + wind offset; snow uses slower drifting particles with rotation. Particle density and wind strength scale with weather intensity.
Lightning: Randomized timing during thunderstorms, triggers screen flash and temporary outdoor light boost.
Cloud System: Voxel-style cloud layer with horizontal drift, casts dynamic shadows on terrain below.

Fog & Sky Rendering:

Distance Fog: Exponential fog blended in fragment shader; base density scales with weather (clear=light, rain/snow=dense) and time of day (thicker fog at dawn). Fog color matches current sky gradient.
Sky Gradient: Procedural color blend from horizon to zenith, driven by sun position and weather. Overcast weather desaturates and darkens sky; night transitions to star field.
Medium Detection: Camera tracks current medium (air/water/lava). Underwater applies blue tint + increased fog + screen distortion; lava applies red-orange overlay + extreme fog + heat shimmer.

Fog Underwater

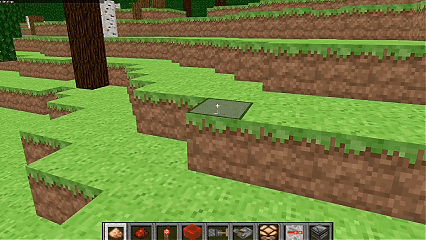

Basic Physics System

RedCraft implements entity-component style physics with multiple movement modes.

Movement modes: Walking, Flying, NoClip with per-mode acceleration curves (Press V to change)
AABB collision detection with step-up support
Camera modes: First-person, Over-shoulder, Fixed-angle, Spectator (Press C to change)
Inventory system with hotbar and item management
